Webhook Data Collection

Webhook Overview

What is a Webhook?

Webhooks offer a simple, real-time way to send data from client applications to Ascent360. They are widely used for efficient, event-driven data sharing.

Clients can integrate webhooks to send relevant data (e.g., orders or customer info) directly to Ascent360. Some development effort is required—please contact your Customer Success Manager or the Help Desk before starting.

Example: A POS or PMS system can send purchase data to Ascent360 via webhook. This data can:

  • Be added to your database as an integration feed
  • Trigger real-time actions, like a custom transaction confirmation email

Ascent360 receives, parses, and stores the data automatically.

How It Works

Ascent360 uses a simple, cloud-hosted application to receive data via HTTP POST at: https://webhook.ascent360.com/V1/Data/{GUID}

Here’s what happens:

  1. The client sends a JSON or XML payload to the Ascent360 webhook URL.
  2. The URL includes a client-specific GUID for security.
  3. Ascent360 stores the raw data securely.
  4. The data is parsed into structured fields (using a predefined format).
  5. Parsed data is loaded into the Ascent360 database.
  6. Optional: Automated actions (e.g., sending an email) can be triggered based on the data.

Webhook Setup Information

Overview

  • Ascent360 configures your data source, assigning a Client ID and a GUID (used for security).
  • Your unique webhook URL will be: https://webhook.ascent360.com/V1/Data/{GUID}
    Example:https://webhook.ascent360.com/V1/Data/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
  • Method: Data must be sent via HTTPS POST to your assigned webhook URL.
  • Preferred Format: JSON (XML is supported, but not preferred).
  • Implementation: Can be done using server-side or client-side scripts.
  • Response: The endpoint returns standard HTTP status codes only (200, 4xx, or 5xx).

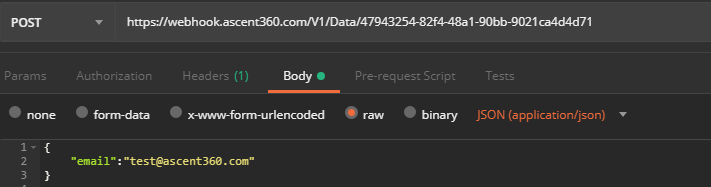

How this may look in Postman:

How this may look in Code:

<span class="hljs-keyword">var</span> client = <span class="hljs-keyword">new</span> RestClient(<span class="hljs-string">"https://webhook.ascent360.com/V1/Data/{GUID}"</span>); <span class="hljs-keyword">var</span> request = <span class="hljs-keyword">new</span> RestRequest(Method.POST); request.AddHeader(<span class="hljs-string">"cache-control"</span>, <span class="hljs-string">"no-cache"</span>); request.AddHeader(<span class="hljs-string">"Content-Type"</span>, <span class="hljs-string">"application/json"</span>); request.AddParameter(<span class="hljs-string">"undefined"</span>, <span class="hljs-string">"{\n\t\"email\":\"test@ascent360.com\"\n}"</span>, ParameterType.RequestBody); IRestResponse response = client.Execute(request);

Ascent360 processes data in real time using one of the following methods:

  • Generic JSON Parsing: For simple, well-structured JSON.
  • Custom JSON Parsing: For more complex JSON structures.
  • Custom Format Parsing: For XML or other formats, based on predefined requirements.

Request Body Parameters

General Notes:

  • Only valid JSON will be accepted.
  • Even incorrect field names or aliasing won't throw errors if the JSON is valid.
  • Values are not case-sensitive.
  • Use the exact key names as shown in the Example JSON Request below.

Field

Include in Request Body As

Accepted Data Formats

Required?

Description

Source Name

SourceName

String

Required

Populates Source Name field in Ascent360.

Source TypeSourceTypeStringRequiredPopulates Source Type field in Ascent360.

First Name

FirstName

String

Recommended


Last Name

LastName

String

Optional


Date of Birth

DateOfBirth

Date

Optional

mm-dd-yyyy

Gender

Gender

Text - "male" / "female"

Optional

Only “Male” and “Female” are stored. Other values display as “Unknown” in Ascent360.

Email

Email

Email (string)

Recommended

Email address.

Explicit Email Permission

EmailPermission

Boolean - true / false

Recommended

Denotes a change in explicit opt in / opt out from email communication. Exclude if explicit consent is not given or withdrawn.

TRUE = email marketing explicit opt-in.
FALSE = email marketing explicit opt-out.

Phone

Phone

International phone (string)

Optional

Phone number. Explicit Phone Permission (separate field) is applied to this field.

Mobile

Mobile

international phone (string)

Optional

Mobile phone number. Explicit SMS Permission (separate field) is applied to this field.

Explicit Phone Permission

PhonePermission

Boolean - true / false

Optional

Denotes a change in explicit opt in / opt out for phone communication. Permissions are applied to the "Phone" field, not “Mobile”. This field is not used for SMS / Mobile communications. Exclude if explicit consent isn’t given or withdrawn.

Explicit SMS
Permission
SMSPermissionBoolean - true / falseOptionalDenotes a change in explicit opt in / opt out for SMS. communication. Exclude from your payload if explicit consent is not given or withdrawn.
TRUE = SMS explicit opt-in.
FALSE = SMS explicit opt-out.

Address

Address

JSON object


The address block must be passed within the address JSON object. See previous example.

ADDRESS LINE 1

Addressline1

String

Optional

Field in address block

ADDRESS LINE 2

Addressline2

String

Optional

Field in address block

CITY

City

String

Optional

Field in address block

STATE

State

String

Optional

Field in address block

ZIP

Zip

String

Optional

Field in address block

COUNTRY

Country

String

Optional

Field in address block

Explicit Address Permission

AddressPermission

Boolean - true / false

Optional

Denotes a change in explicit opt in / opt out from contact by mail. Exclude if explicit consent isn’t given or withdrawn.

Activities

Activities

Array - text values

Optional

An array of text values. Please contact your CSM if you anticipate needing this field.

Interests

Interests

Array - text values

Optional

An array of text values. Please contact your CSM if you anticipate needing this field.

Newsletters

NewsLetters

Array - text values

Optional

An array of text values. Please contact your CSM if you anticipate needing this field.

Provider Type

ProviderType

numeric

Optional

This is the ID of the provider you want to send contacts to – i.e. Acoustic is "7". Mailchimp is "3". If the data just needs to flow into Ascent360 (and no other location) you do not need to include this field.

Provider List IDs

ListIds

Array - text / numeric values

Optional

This is an array of lists a form submitter should be added to *within* the provider (defined by provider ID). (i.e. ID of newsletter list).

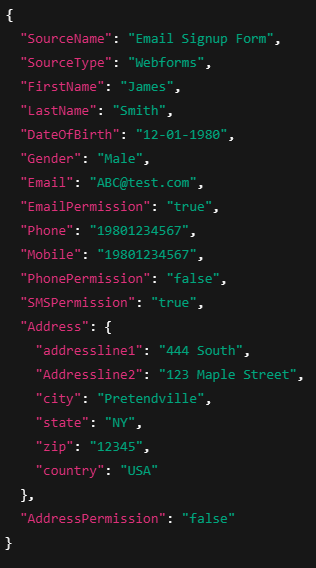

Example JSON HTTP Request Body

If implementing in the web browser, create a JSON string using JavaScript then call the webhook via an XMLHttpRequest. Only the POST method will work. Alternately, this can be accomplished through server-side scripting (i.e. C#, Java, Rust, etc.).

 var xhttp = new XMLHttpRequest();
 xhttp.open("POST", "  --insert custom webhook URL here--  ");
 xhttp.send(     --insert JSON string here--      );

Do’s & Don’ts

  • ✅ Use correct field names and structure.
  • ❌ Don’t assume a 200 response means success—data may not be parsed/stored if the format is incorrect.
  • ✅ JSON is case-insensitive, but it's best to match key names to the documented format.
